Fluke 4755909 Description

The Fluke 123BNAS 20 MHz, 2-Channel, 40 MS/s Industrial ScopeMeter Hand-Held Oscilloscope with Accessories and Fluke Connect Compatibility is the rugged oscilloscope solution for industrial electrical and electro-mechanical equipment troubleshooting and maintenance applications. It is a truly integrated test tool with oscilloscope, multimeter and high-speed recorder in one, easy-to-use instrument. The 123B/NA/S also integrates with Fluke Connect mobile app and FlukeView for ScopeMeter software to enable further collaboration, data analysis and archiving of critical test information.The 123B/NA/S includes innovative functions designed to help technicians troubleshoot faster and get the answers they need to keep their systems up and running. Display waveforms with Connect and View trigger and setup technology and automatically view related numerical measurements using Fluke IntellaSet technology, all without making manual measurement adjustments. With Recorder Event Detect capabilities, elusive intermittent events are captured and logged for easy viewing and analysis.

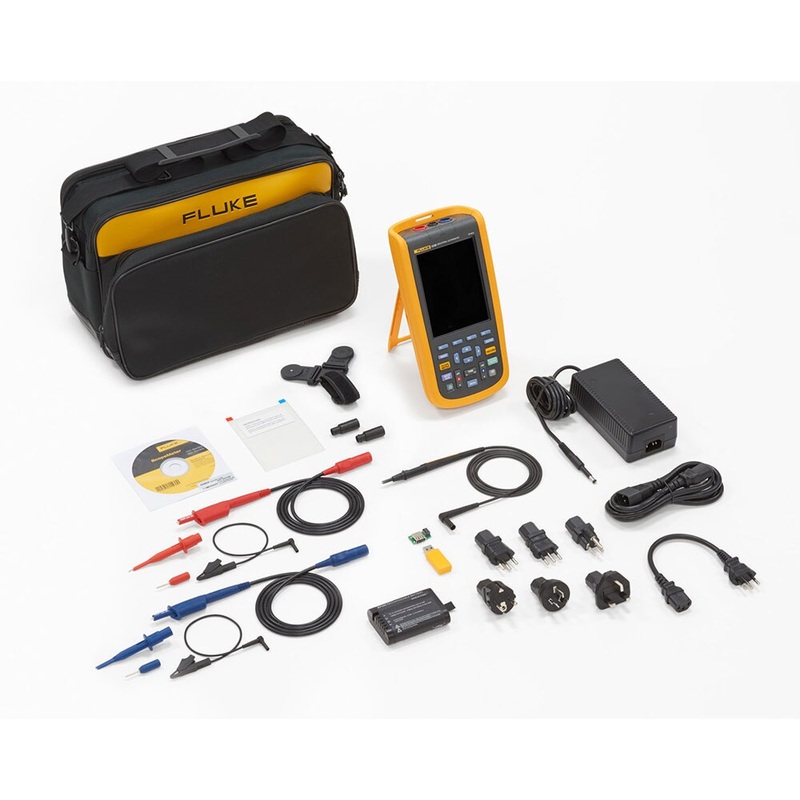

Fluke 4755909 Includes

• (1) Rechargeable Li-ion Battery Pack
• (1) Switch Mode Power Supply, Adapter/Battery Charger
• (1) Shielded Test Leads with Black Ground Leads
• (1) Black Test Lead (for Grounding)
• (1) Set of Red and Black Hook Clips
• (2) Black Banana-to-BNC Adapters
• (1) USB Angled Adapter
• (1) Magnetic Hanger
• (1) Soft Carrying Case
• (1) FlukeView ScopeMeter Software for Windows
• (1) Screen Protector
• (1) WiFi USB Adapter

Fluke 4755909 Features

• Full function dual input scope and meter
• Oscilloscope bandwidth: 20 MHz
• Meter and scope recorder
• Two 5,000-count true-rms digital multimeters
• Connect-and-View trigger simplicity for hands-off operation
• IntellaSet technology automatically and intelligently adjusts numerical readouts
• Dual-input waveform and meter reading recorder for trending data over extended periods
• Recorder Event Detect captures elusive intermittent signals
• WiFi adapter connects to internal USB port to wirelessly transfer information to PC, laptop or Fluke Connect mobile app
