Name: Pacific Laser 5022558 PLS HV2R KIT, Manual Slope Red Rotary Laser Kit
SKU: JK6447228546
Availability: InStock

Pacific Laser 5022558 PLS HV2R KIT, Manual Slope Red Rotary Laser Kit

$150.00 $2,891.95

Pacific Laser Systems 5022558 Description The PLS HV2R Kit is a red horizontal with vertical plumb point rotary laser level for level, slope, and square alignment packaged for individual sale in the PLS C19 rotary laser case and printed cardboard box. Paci

Security Policy (Protecting Your Data, Ensuring Your Safety)
Delivery Policy (Free shipping on orders over $30)
Return Policy (60 day easy Return)

SKU: JK6447228546 Category: lasers

Description Reviews (0)

Pacific Laser Systems 5022558 Description

The PLS HV2R Kit is a red horizontal with vertical plumb point rotary laser level for level, slope, and square alignment packaged for individual sale in the PLS C19 rotary laser case and printed cardboard box.

Pacific Laser Systems 5022558 Includes

(1) PLS HV2R Rotary Laser Level
(1) PLS BP10 Alkaline Battery Tray
(4) D Batteries
(1) PLS RBP10 NiMH Battery Tray
(1) PLS XLD Detector with Clamp
(1) PLS RRT4 Reflective Target
(1) PLS RC2 Remote
(1) PLS WCB10 Bracket
(1) PLS GR16 Grade Rod
(1) PLS TPOD500 Tripod
(1) PLS C19 Carrying Case
(1) Quick Reference Guide
(1) Safety Documentation

Pacific Laser Systems 5022558 Features

Red Horizontal/Vertical Rotary Laser Level
Class II Red Laser
Self-leveling within 5 degrees
Dual Manual Slope
Up-Point for Layout Tasks
Remote Control
Alkaline and NiMH Battery Trays

Rotary levels PLS HV2R PLS HV2G Laser Class II red Class II green Laser axis Horizontal and Vertical Horizontal and vertical Accuracy 2.2 mm @ 30 m ( 3/32 in @ 100 ft) 2.2 mm @ 30 m ( 3/32 in @ 100 ft) Auto-leveling range 5-degrees 5-degrees Manual slope range 5-degrees 5-degrees Working range Without XLD
laser detector 30 m (100 ft) 30 m (100 ft) With XLD
laser detector 300 m (1000 ft) 300 m (1000 ft) Weight 3 kg (6.6 lb) 3 kg (6.6 lb) Drop test 1 m 1 m IP rating IP67 IP67 Operating
temperature -20 C to 50 C (-4 F to 122 F) -20 C to 50 C (-4 F to 122 F) Battery 4 x D Alkaline or NiMH rechargeable 4 x D Alkaline or NiMH rechargeable Battery life > 60 hours > 60 hours Accessories PLS XLD Rotary Laser Detector Working range 300m (1000 ft) Dimensions 135 mm x 69 mm x 25 mm Weight 0.19 kg (0.42 lbs) Drop test 1 m IP rating IP67 Operating
temperature -20 C to 50 C (-4 F to 122 F) Battery 1 x AA Alkaline Battery life > 50 hours Visible spectrum 450 nm 800 nm Accuracy Fine 1 mm (0.05 in) Medium 2 mm (0.1 in) Coarse 5 mm (0.2 in) Electromagnetic compatibility (EMC) International IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B

Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.

Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object Korea (KCC) Class B Equipment (Broadcast communications equipment for home) USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Reviews

There are no reviews yet.

Be the first to review “Pacific Laser 5022558 PLS HV2R KIT, Manual Slope Red Rotary Laser Kit”

Pacific Laser 5022558 PLS HV2R KIT, Manual Slope Red Rotary Laser Kit

Pacific Laser Systems 5022558 Description

Pacific Laser Systems 5022558 Includes

Pacific Laser Systems 5022558 Features

Reviews

You Might Also Like

Pacific Laser 5009391 PLS 5R KIT, 5-Point Red Laser Kit

Pacific Laser Systems 5022512 PLS HV2R SYS, Manual Slope Red Rotary Laser System

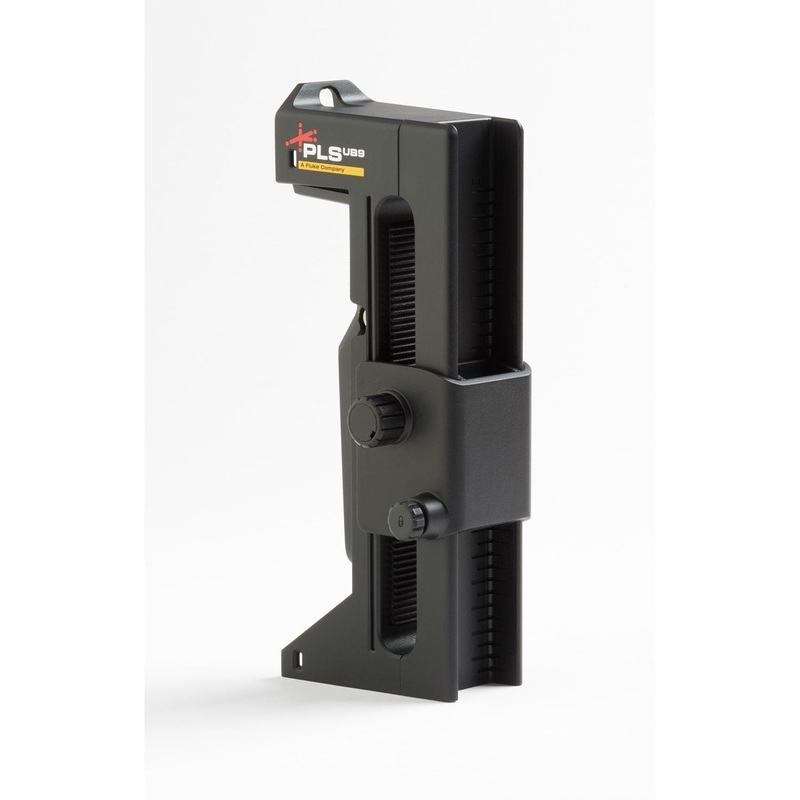

Pacific Laser PLS UB9, UB9 Universal Ceiling/Wall Bracket
