Name: Pacific Laser Systems 5022481 PLS H2 SYS, Horizontal Red Rotary Laser System
SKU: JK6447228550
Availability: InStock

Pacific Laser Systems 5022481 PLS H2 SYS, Horizontal Red Rotary Laser System

$147.00 $1,613.11

Pacific Laser Systems 5022481 Description The PLS H2 System is a red horizontal-only rotary laser level for level alignment packaged for individual sale in the PLS C19 rotary laser case and printed cardboard box. Pacific Laser Systems 5022481 Includes (1)

Security Policy (Protecting Your Data, Ensuring Your Safety)
Delivery Policy (Free shipping on orders over $30)
Return Policy (60 day easy Return)

SKU: JK6447228550 Category: lasers

Description Reviews (0)

Pacific Laser Systems 5022481 Description

The PLS H2 System is a red horizontal-only rotary laser level for level alignment packaged for individual sale in the PLS C19 rotary laser case and printed cardboard box.

Pacific Laser Systems 5022481 Includes

(1) PLS H2 Rotary laser level
(1) PLS BP10 Alkaline Battery Tray
(4) D Batteries
(1) PLS RBP10 NiMH Battery Tray
(1) PLS XLD Detector with Clamp
(1) PLS RRT4 Reflective Target
(1) PLS C19 Carrying Case
(1) Quick Reference Guide
(1) Safety Documentation

Pacific Laser Systems 5022481 Features

Red Horizontal Rotary Laser Level
Class II Red Laser
Self-leveling within 5 degrees
One-Button Operation
Alkaline and NiMH Battery Trays

Rotary levels PLS H2 Laser Class II red Laser axis Horizontal only Accuracy 2.2 mm @ 30 m ( 3/32 in @ 100 ft) Auto-leveling range 5-degrees Manual slope range 5-degrees Working range Without XLD laser detector 30 m (100 ft) With XLD laser detector 300 m (1000 ft) Weight 2.89 kg (6.4 lb) Drop test 1 m IP rating IP67 Operating temperature -20 C to 50 C (-4 F to 122 F) Battery 4 x D Alkaline or NiMH rechargeable Battery life > 60 hours Accessories PLS XLD Rotary Laser Detector Working range 300m (1000 ft) Dimensions 135 mm x 69 mm x 25 mm Weight 0.19 kg (0.42 lbs) Drop test 1 m IP rating IP67 Operating temperature -20 C to 50 C (-4 F to 122 F) Battery 1 x AA Alkaline Battery life > 50 hours Visible spectrum 450 nm 800 nm Accuracy Fine 1 mm (0.05 in) Medium 2 mm (0.1 in) Coarse 5 mm (0.2 in) Electromagnetic Compatibility (EMC) International IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object Korea (KCC) Class B Equipment (Broadcast communications equipment for home) USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Reviews

There are no reviews yet.

Be the first to review “Pacific Laser Systems 5022481 PLS H2 SYS, Horizontal Red Rotary Laser System”

Pacific Laser Systems 5022481 PLS H2 SYS, Horizontal Red Rotary Laser System

Pacific Laser Systems 5022481 Description

Pacific Laser Systems 5022481 Includes

Pacific Laser Systems 5022481 Features

Reviews

You Might Also Like

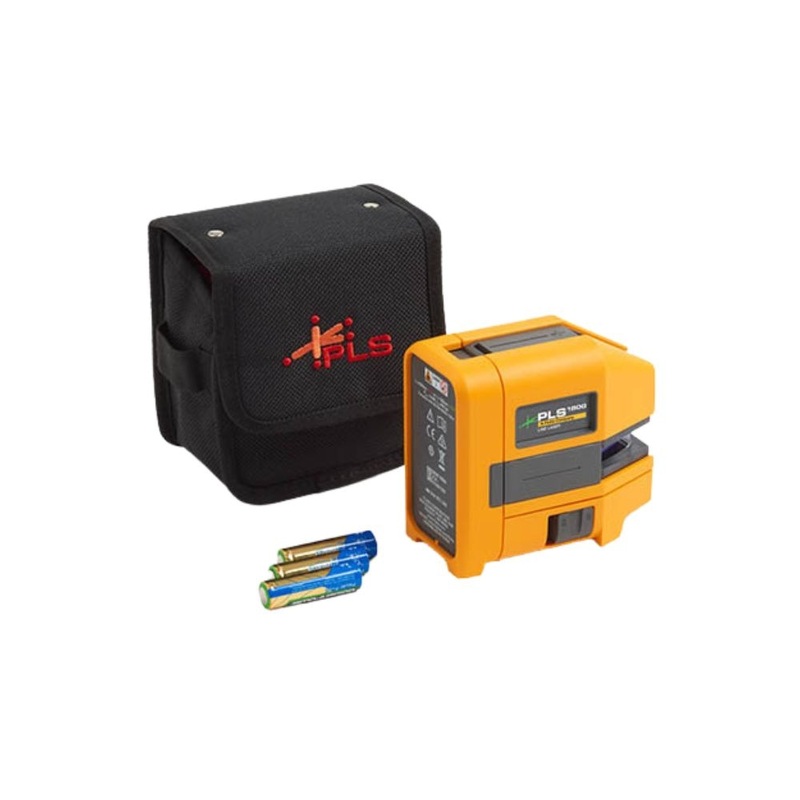

Pacific Laser Systems 5017287 PLS 180G Z, Cross Line Green Laser Bare Tool

Pacific Laser 5009391 PLS 5R KIT, 5-Point Red Laser Kit

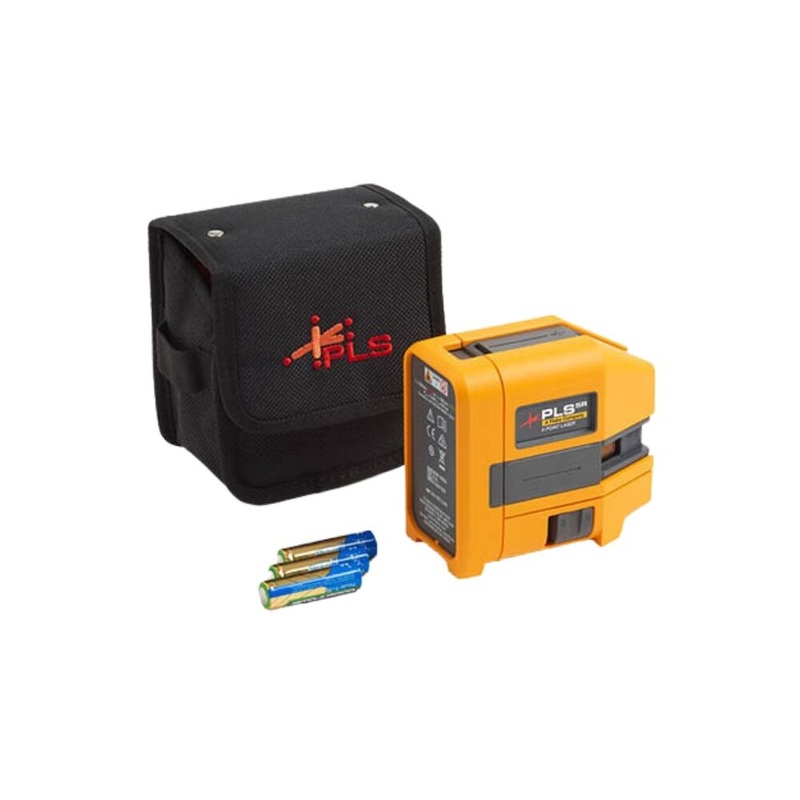

Pacific Laser Systems 5009384 PLS 5R Z, 5-Point Red Laser Bare Tool

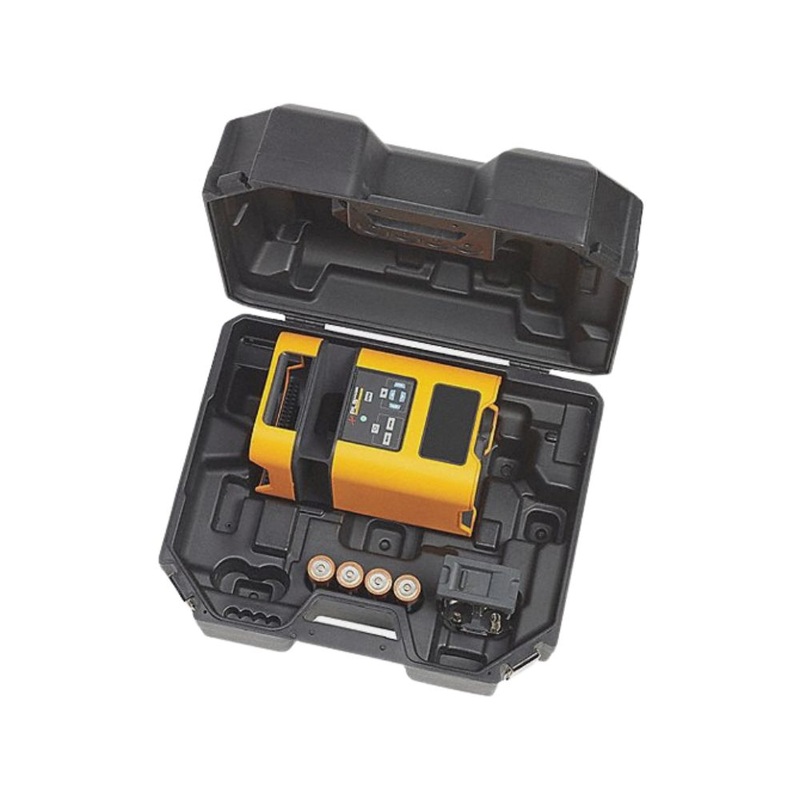

Pacific Laser Systems 5022501 PLS HV2R Z, Manual Slope Red Rotary Laser Bare Tool
